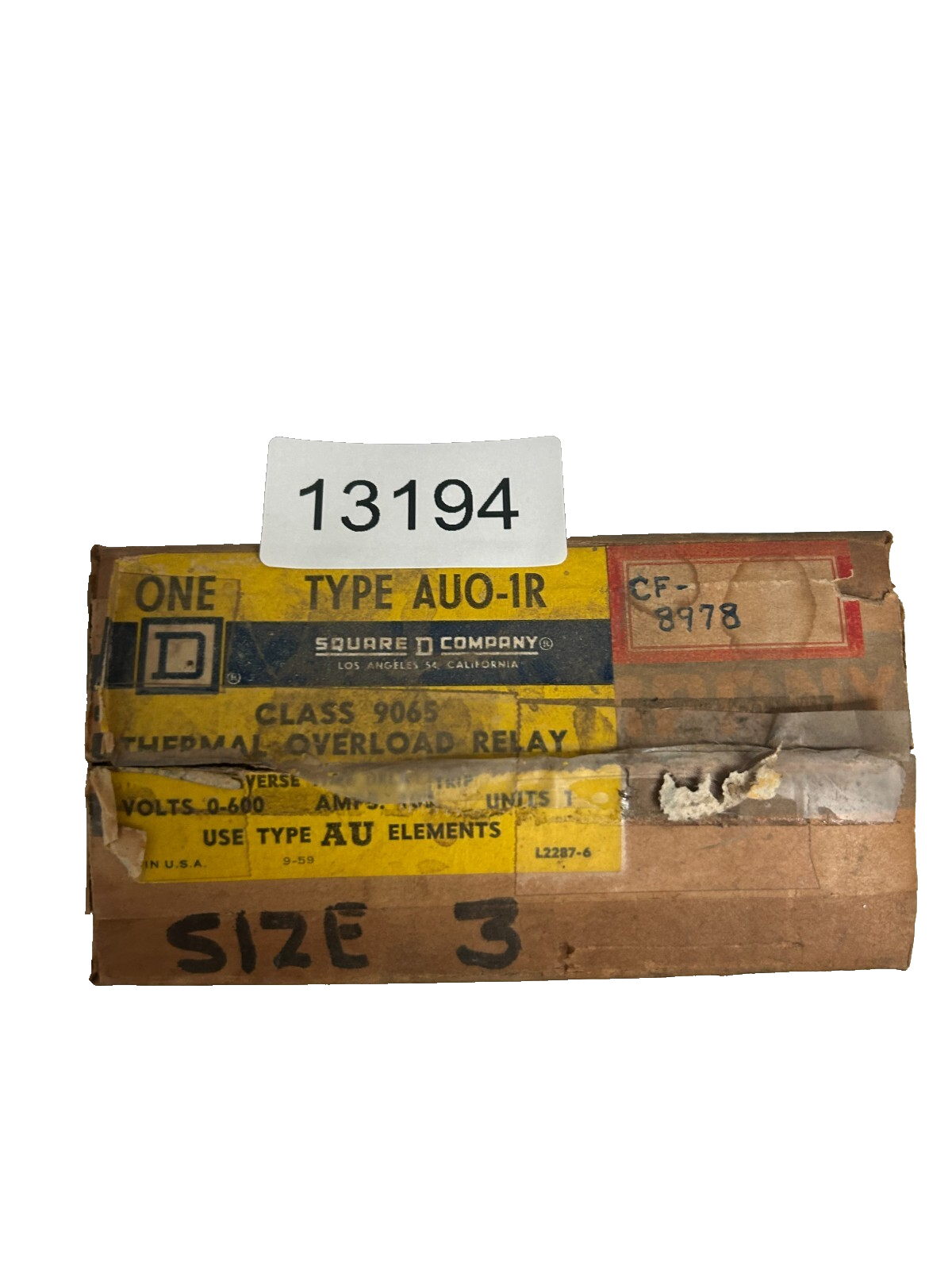

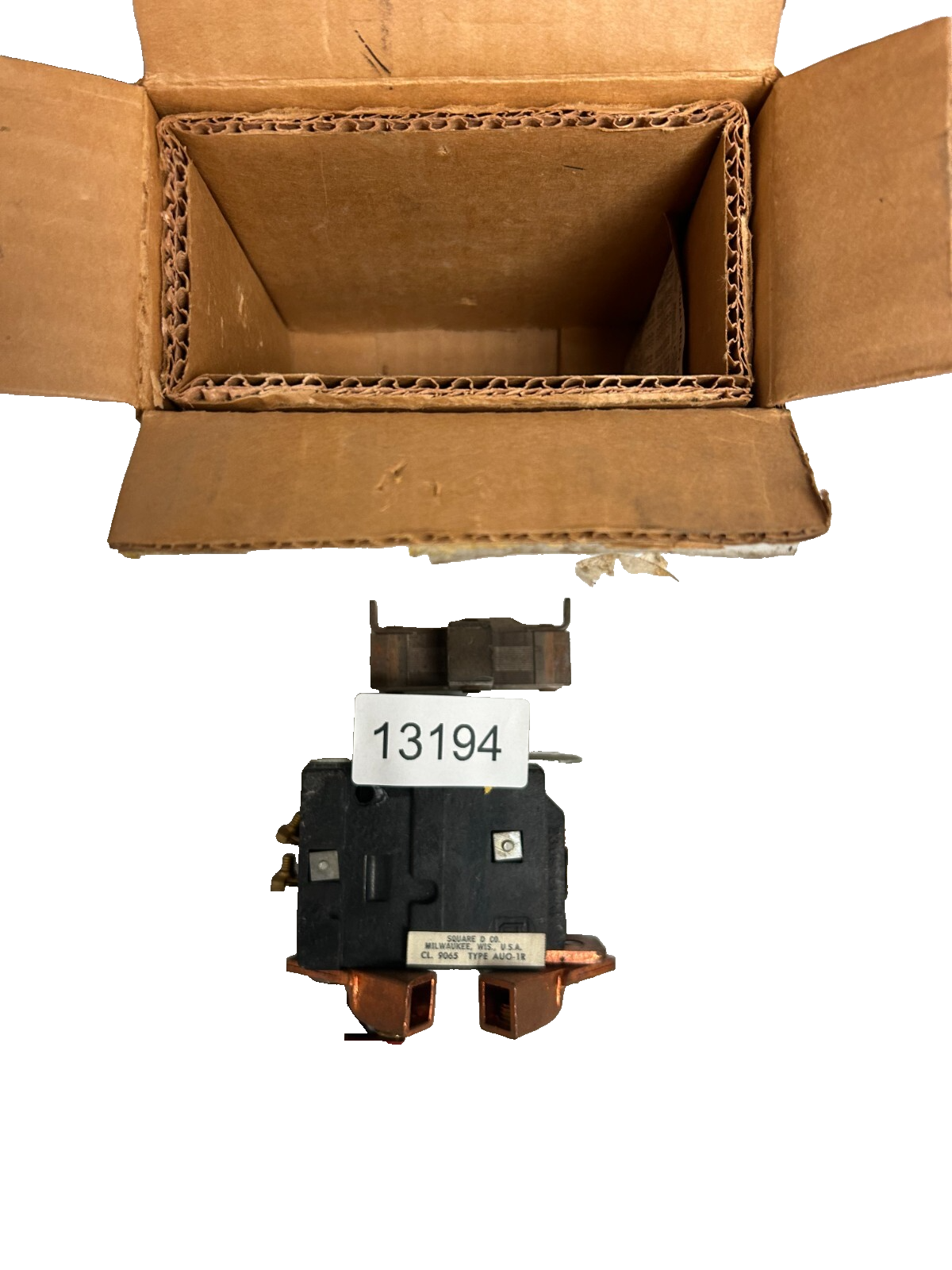

Square D 9065AUO1R Thermal Overload Relay 600 V Max AC 250 V Max DC 100 Amp

The Square D 9065 AUO-1R Thermal Overload Relay provides essential motor and equipment protection in industrial electrical systems. This thermal overload relay is designed to prevent motor damage due to overload conditions by interrupting the power supply when excessive currents are detected. Rated for a maximum voltage of 600V AC and 250V DC, with a 100 Amp rating, the 9065 AUO-1R offers reliable protection for a variety of industrial and commercial applications. Whether used in motor starters, motor protection circuits, or complex machinery control systems, this thermal overload relay ensures optimal performance and prevents costly damage from overcurrent events.

Key Features:

• Rated for 100 Amps: This relay is designed to protect systems with up to 100 amps of current, ensuring safe operation for high-power motors and equipment.

• 600V Max AC & 250V Max DC Rating: The 9065 AUO-1R supports both 600V AC and 250V DC, offering versatility for use in a variety of electrical systems.

• Thermal Overload Protection: Provides reliable, automatic overload protection by monitoring the temperature rise in the motor, activating when an overcurrent condition occurs.

• Adjustable Trip Settings: Allows for easy adjustment of the trip point, ensuring that protection settings can be tailored to suit different motor sizes and application requirements.

• Reliable Motor Protection: Prevents damage to motors and electrical equipment from sustained overcurrent or thermal stress, extending the life of your machinery.

• Durable, Long-Lasting Construction: Built to withstand tough industrial environments, this relay is constructed for long-lasting reliability and performance.

• Easy Integration with Motor Starters: Designed to work seamlessly with Square D motor starters and other electrical protection systems, simplifying installation and system design.

• LED Status Indicators: Equipped with clear LED status indicators for quick diagnostics and troubleshooting, making it easy to monitor relay status and maintain optimal operation.

• Meets Industry Standards: Complies with relevant industry standards for overload protection and motor safety, providing peace of mind that your systems meet regulatory requirements.
