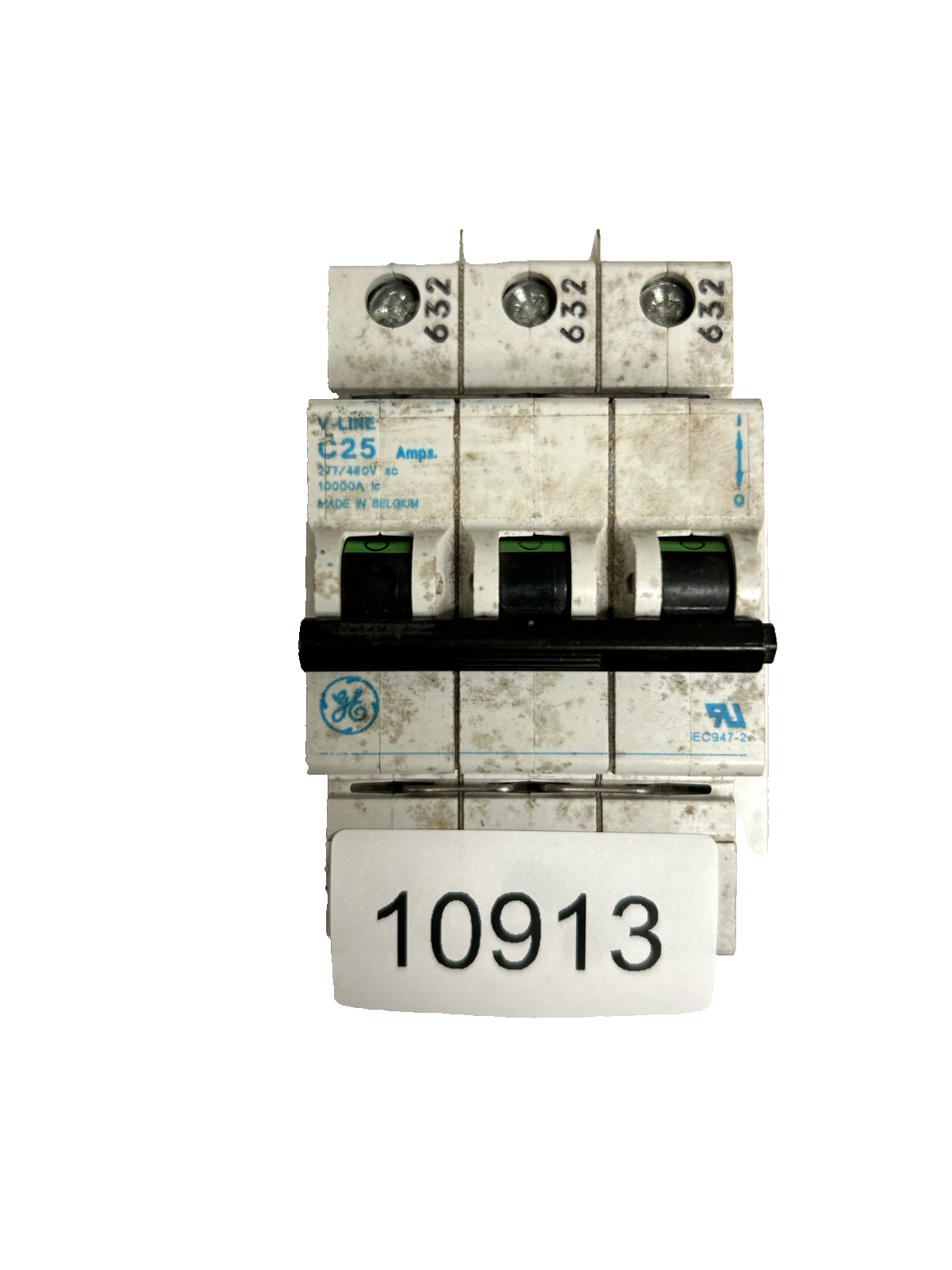

General Electric C25 Circuit Breaker

The General Electric C25 circuit breaker is part of GE's C-Frame family, designed for various protection applications in electrical systems. Here’s an overview of its key features and specifications:

Specifications

• Type: Miniature circuit breaker (MCB)
• Rated Current: Typically rated for 25 amps.
• Voltage Rating: Commonly used in 240V or 480V systems, but specific ratings should be confirmed based on the model.
• Poles: Available in different pole configurations (single, double, or triple pole) depending on application needs.
• Trip Characteristics: Generally designed with thermal-magnetic trip mechanisms for reliable protection against overloads and short circuits.

Features

• Compact Design: Space-saving design suitable for panel mounting.
• User-Friendly: Easy to reset after tripping, minimizing downtime.
• Reliable Protection: Designed to protect circuits from overload and short-circuit conditions.
• Visual Trip Indicator: Often features a visual indicator to show when the breaker has tripped.

Common Applications

• Commercial and industrial electrical distribution
• Motor control circuits
• Lighting circuits
• HVAC systems

Installation Tips

• Ensure proper wiring according to the manufacturer’s specifications and local electrical codes.
• Confirm the circuit breaker is rated appropriately for the load it will protect.
• Use the correct pole configuration based on your application (single-phase vs. three-phase).

Maintenance

• Regularly inspect for signs of wear or damage.
• Test the circuit breaker periodically to ensure it trips correctly under fault conditions.
• Keep the area around the breaker clean and free from debris.
