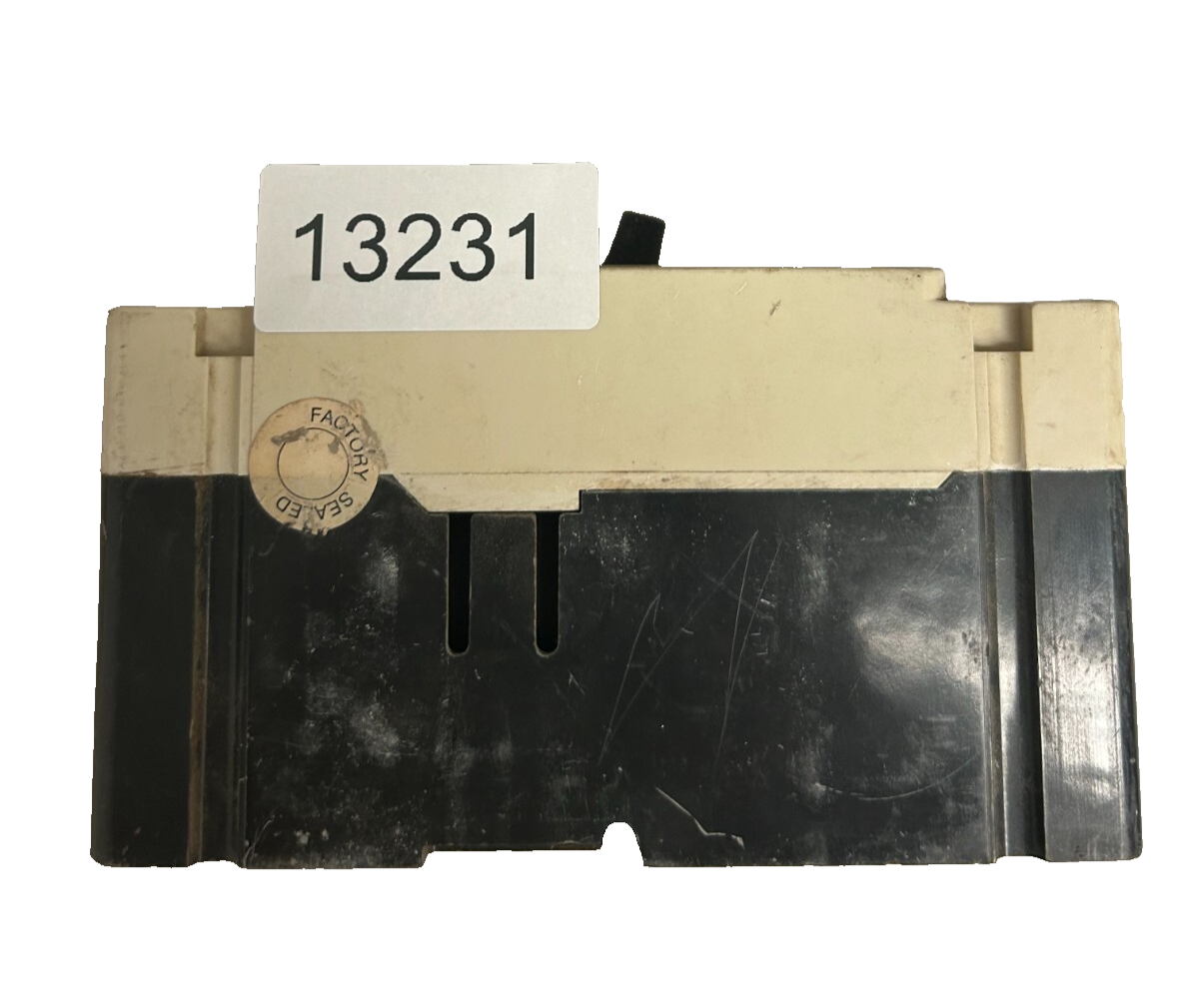

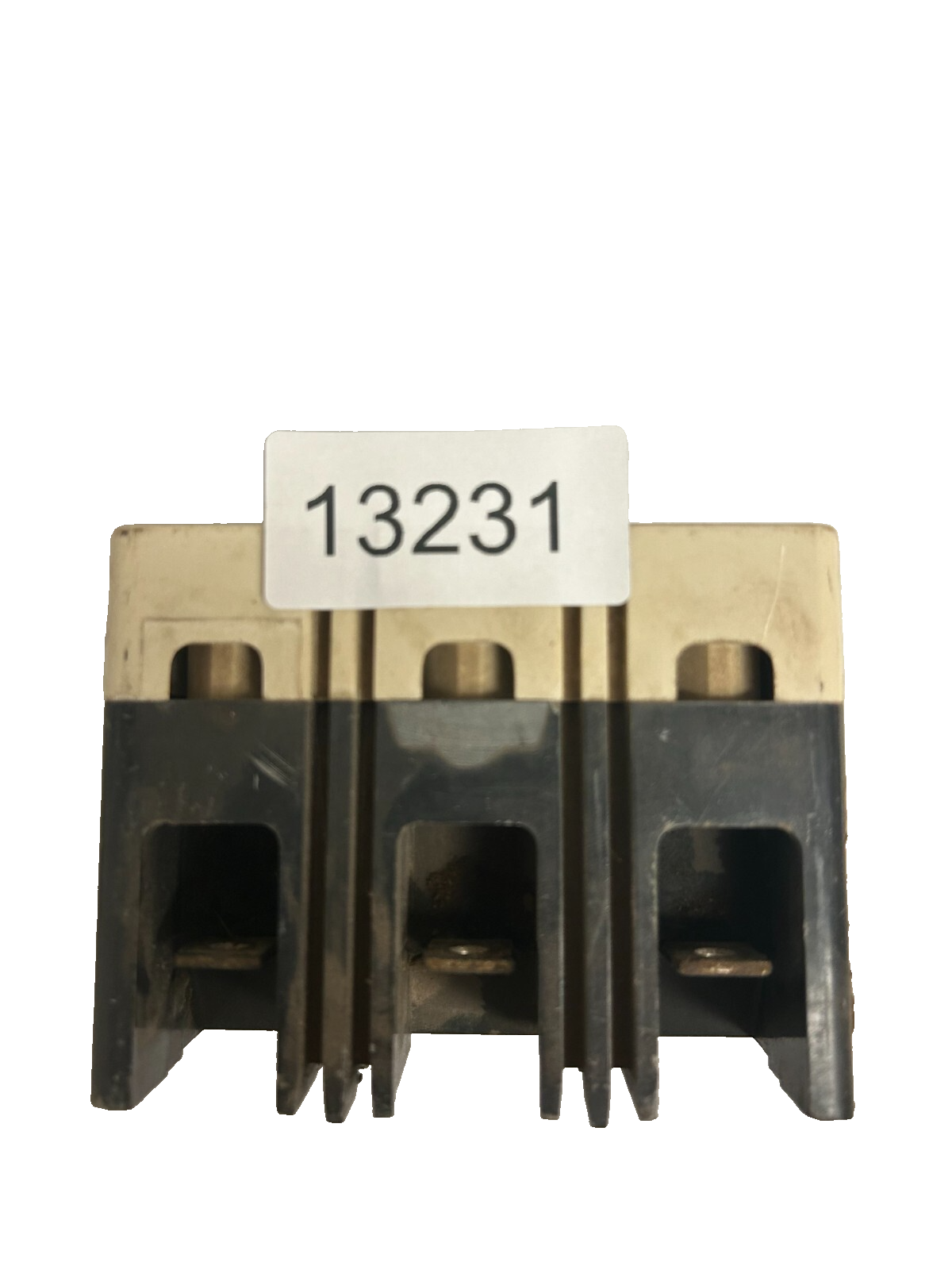

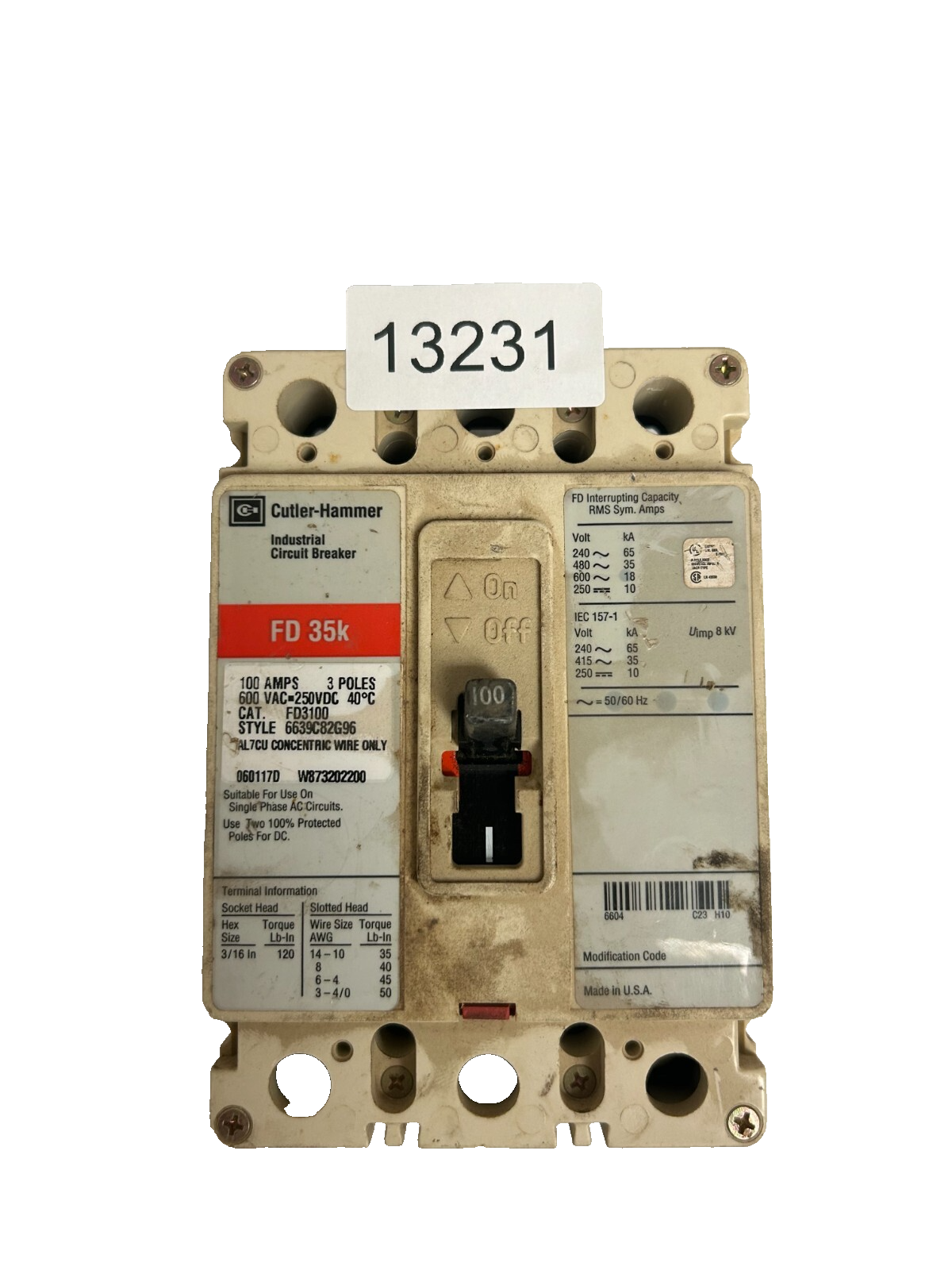

Cutler Hammer FD3100 BP10 MCCB 3 Pole 100 amp 600v 35k@480v

The Cutler Hammer FD3100 BP10 MCCB (Molded Case Circuit Breaker) is engineered for heavy-duty industrial applications, providing reliable overcurrent protection for three-phase electrical circuits. With a 100 Amp rating, 600V voltage capacity, and an impressive 35kA short-circuit withstand rating at 480V, the FD3100 BP10 is designed to protect motors, transformers, and distribution systems in commercial and industrial environments. This MCCB ensures maximum safety by providing thermal and magnetic protection against overloads and short circuits, making it an ideal choice for motor control centers (MCCs), panelboards, distribution panels, and other critical applications where high fault-current protection is essential.

Built to withstand harsh industrial environments, the Cutler Hammer FD3100 BP10 delivers exceptional durability and long-term reliability, offering the peace of mind that your electrical systems are protected against potential faults and damage.

Key Features:

• 3-Pole Design: The FD3100 BP10 features a 3-pole configuration, providing essential protection for three-phase circuits. It is ideal for use in applications such as motors, HVAC systems, and industrial machinery, ensuring consistent protection across multi-phase electrical systems.

• 100 Amp Rating: With a 100 Amp current rating, the FD3100 BP10 is well-suited for medium to large electrical loads. It provides reliable overcurrent protection for a wide range of industrial applications, including motor circuits, transformers, and distribution systems.

• Voltage Rating (600V): This MCCB is rated for 600V maximum voltage, ensuring compatibility with a wide variety of commercial and industrial electrical systems. It offers high performance and reliability in demanding environments.

• 35kA Short-Circuit Withstand Rating: The 35kA short-circuit withstand rating at 480V provides a high level of protection against catastrophic short-circuit faults. This breaker is designed to handle high fault currents without damage, ensuring that your electrical systems stay intact and safe during extreme conditions.

• Thermal-Magnetic Protection: The FD3100 BP10 integrates both thermal and magnetic protection mechanisms. The thermal protection offers overload protection for prolonged high-current conditions, while the magnetic protection offers instantaneous response to short-circuit conditions, effectively minimizing damage to the system.

• UL Listed & NEC Compliant: The FD3100 BP10 is UL Listed and meets the National Electrical Code (NEC) requirements, ensuring it is manufactured to meet the highest safety and quality standards for use in residential, commercial, and industrial applications.

• Durable and Rugged Construction: The FD3100 BP10 is built to withstand harsh environmental conditions. Its rugged construction ensures long-lasting reliability, even in challenging industrial settings, including high-temperature, dusty, or high-vibration environments.

• Adjustable Trip Settings: This breaker allows for adjustable trip settings, which can be configured to suit the specific protection needs of your electrical system. This flexibility makes it ideal for systems with varying load characteristics or where specific protection criteria are needed.

• Versatile Applications: The FD3100 BP10 is ideal for motor control centers (MCCs), panelboards, distribution boards, electrical switchgear, and electrical panels. It is also suitable for use in generator protection, power substations, and other industrial and commercial applications.

• Easy Installation & Maintenance: Designed for easy installation and maintenance, the FD3100 BP10 fits seamlessly into existing electrical systems and requires minimal upkeep. Its user-friendly design makes it easy to incorporate into new builds or upgrades.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

New Products are covered by a 90 Day Warranty. Used Products are sold as is.
