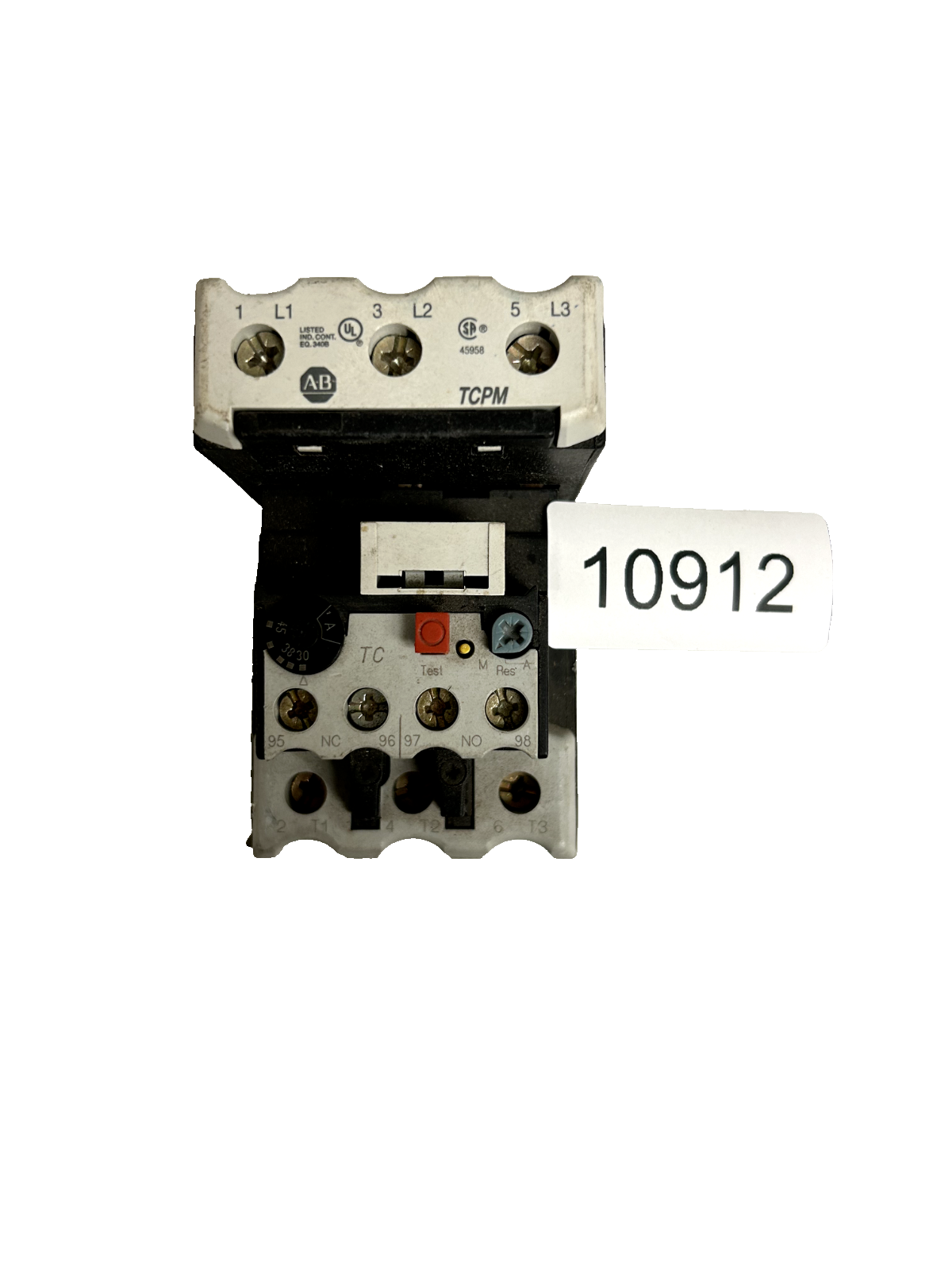

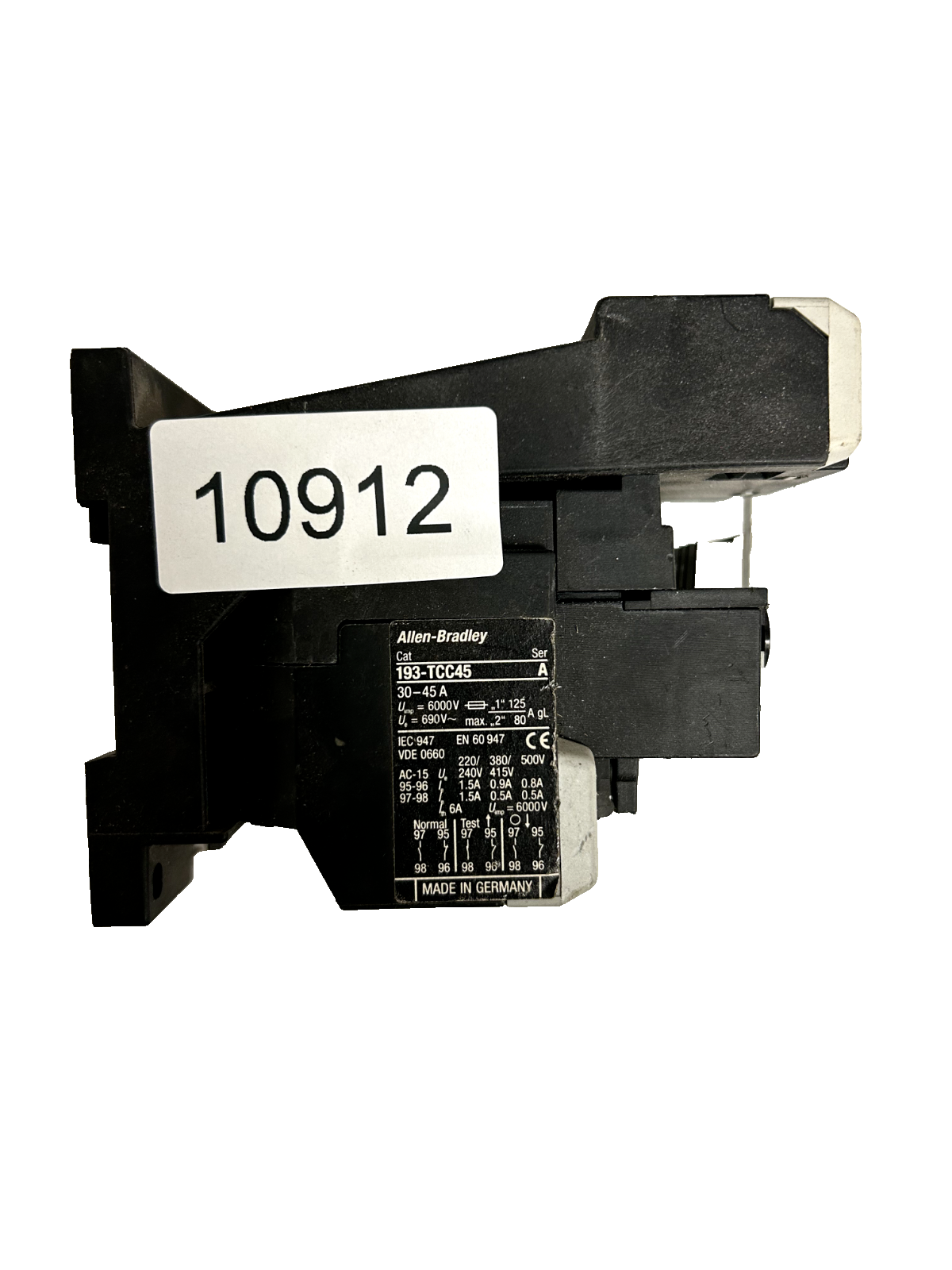

Allen Bradley 193TCC45 Overload Relay

The Allen-Bradley 193-TCC45 is an overload relay designed to protect electric motors from overheating due to overload conditions. Here’s an overview of its key features and specifications:

Specifications

• Type: Thermal overload relay
• Current Rating: Typically adjustable from 45 to 60 amps, allowing for flexibility depending on the motor size.
• Mounting Style: Designed for direct mounting on the associated contactor or in a control panel.
• Temperature Compensation: Features thermal compensation for accurate overload protection across various temperatures.

Features

• Adjustable Settings: The relay allows for manual adjustments to match the motor's full-load current, ensuring proper protection.
• Test Button: Often includes a test button to simulate an overload condition, helping to verify functionality.
• Status Indication: Typically has visual indicators to show overload status and normal operation.
• Interlock Capability: Can be configured to interlock with contactors for added safety and control.

Common Applications

• Motor protection in industrial settings
• HVAC equipment
• Pump control systems
• Any application requiring reliable motor overload protection

Installation Tips

• Ensure proper wiring according to the manufacturer's specifications.
• Adjust the settings to match the motor’s rated full-load current before operation.
• Confirm compatibility with the contactor used in the circuit.
